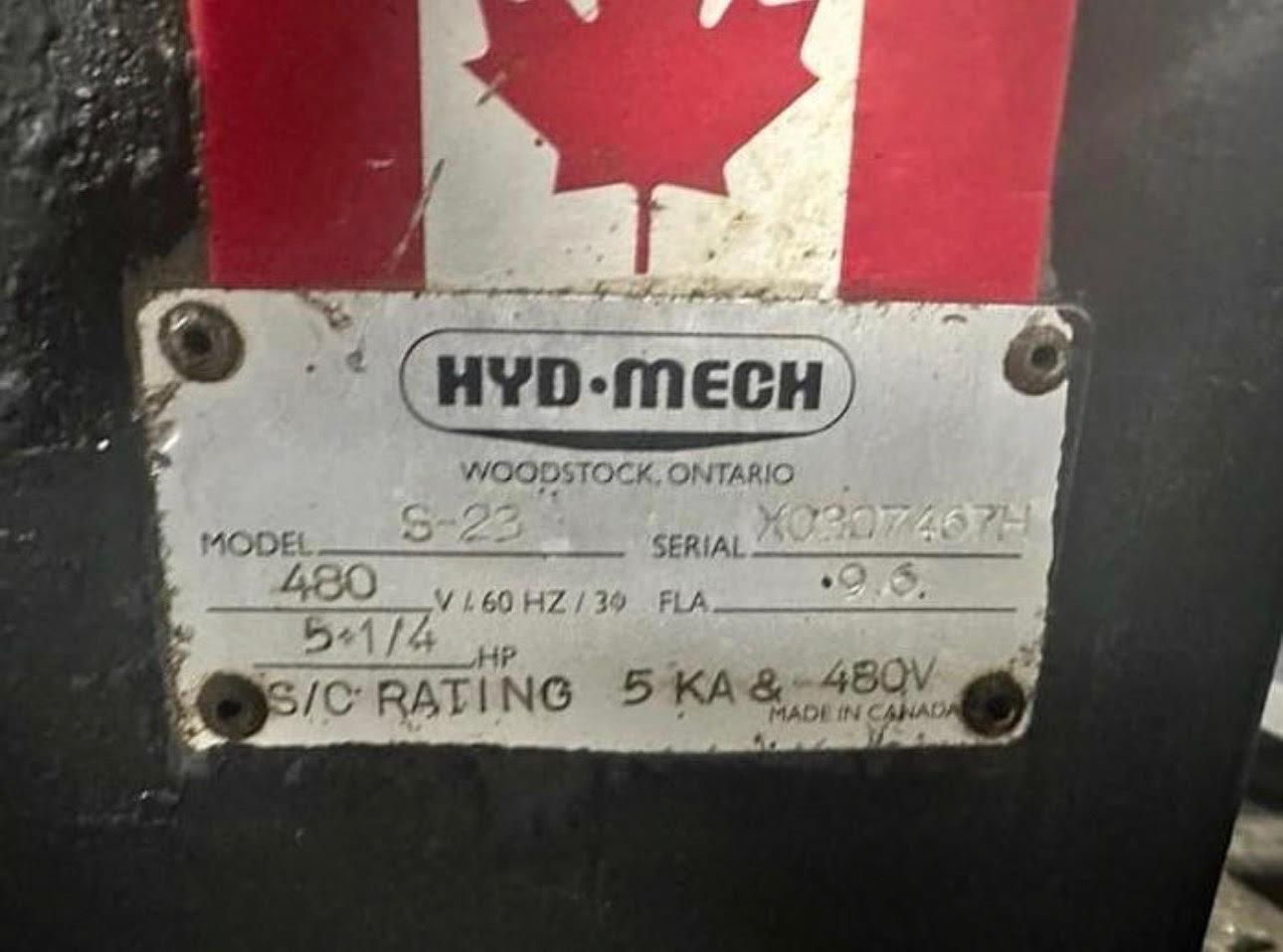

Overview
- Make
- HYDMECH
- Model
- S23H
- Type
- Horizontal Band Saws
- Year
- 2007
- Condition
- Used
Spec Sheet
Capacity Rectangular 90 Degrees 16" x 18"
Capacity Round 90 Degrees 60"
Capacity Square 90 Degrees 16"
Round Capacity 45 Degrees 12"
Rectangle Capacity 45 Degrees 16" x 10"
Round Capacity 60 Degrees 8"
Rectangle Capacity 60 Degrees 16" x 8"
Table Height 31"
Maximum Work Load 5000 lbs
Blade Size 1-1/4" x 15'6" x .042"
Blade Speed 75-350 SFM
Blade Guides
Carbide Blade Wheel Diameter 19"
Guide Arm
Manual Blade Drive Motor 5 HP VFD
Hydruaulic Drive Motor 1/4 HP
Hydraulic tank capacity NA
Coolant Tank Capacity 6 U.S.Gallons
System Pressure NA
Vise Control
Full Stroke
Hydraulic Shuttle Stroke NA
Discharge Table NA
Machine Weight 2000 lbs
Overall Dimensions 95" Wide x 77" Long x 63" High
